Flight case per Pipe & Drape FOH Kit (USA) - Wentex D7559
Codice D7559
Prezzo per 1 unità
1837,64 € (IVA inclusa)
1506,26 € + IVA
Quantità

WENTEX
Codice D7554
Codice EAN 8717748301444
Prezzo per 1 unità
1205,11 €
987,80 € + IVA

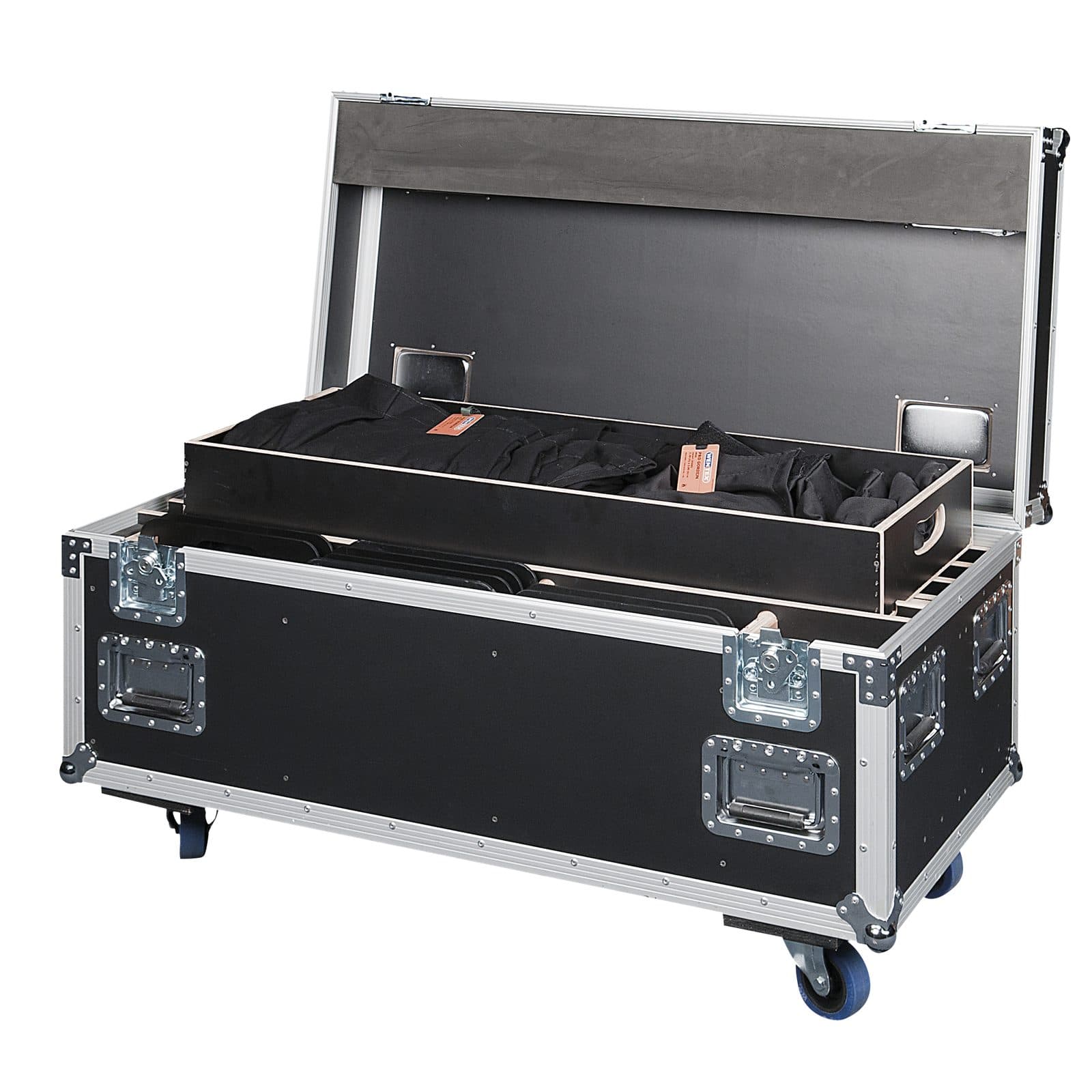

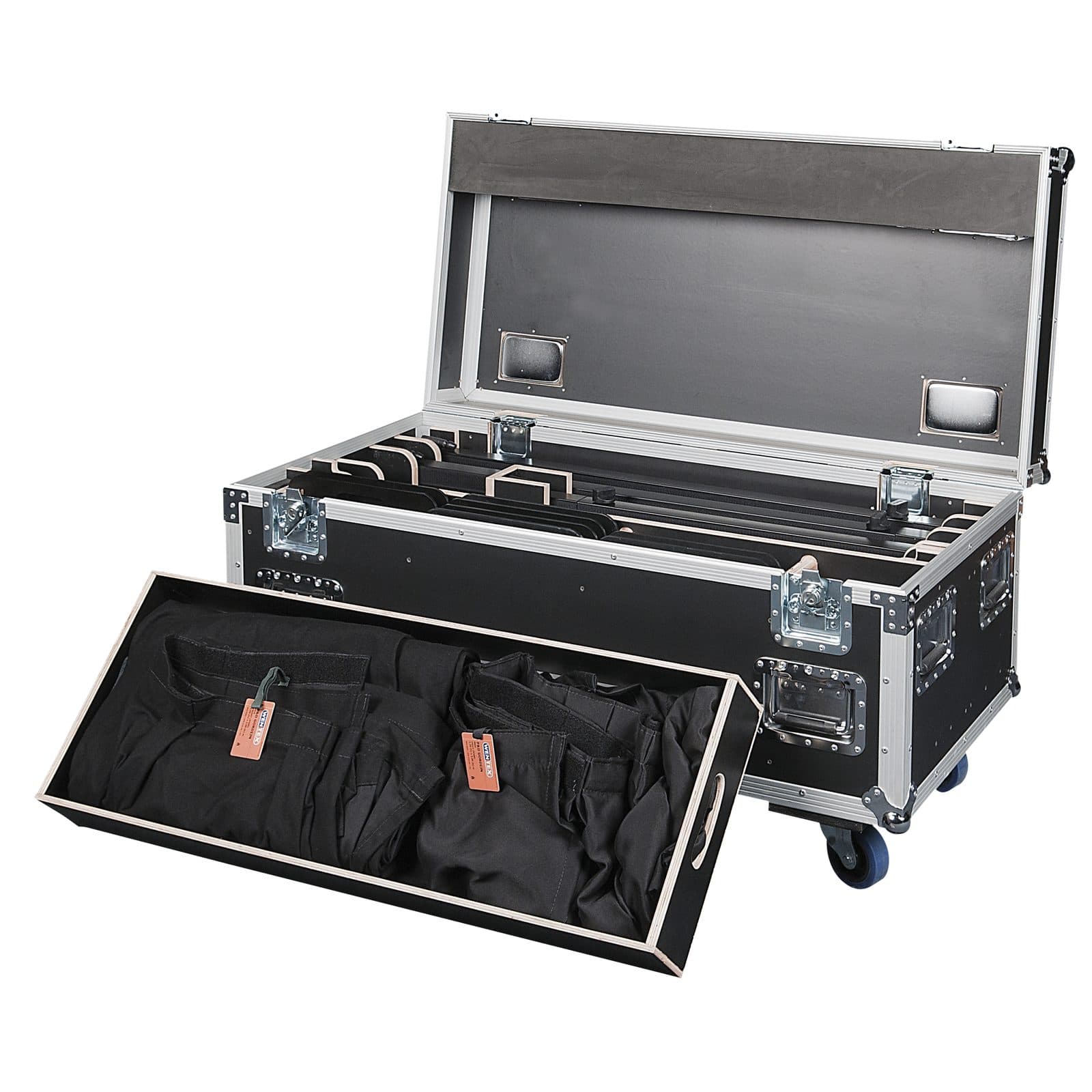

This case is designed to store the components of a complete Pipe & Drape FOH kit. With the contents of such a kit you can cover stages of up to 19 m (62 ft) wide. There is space reserved for the following items:
- 12 Baseplates (350 x 300 mm)
- 12 Baseplate Pins
- 12 Fixed Uprights 120 (h) cm
- 4 Telescopic Drape Supports 90-120 (l) cm
- 8 Telescopic Drape Supports 120-180 (l) cm

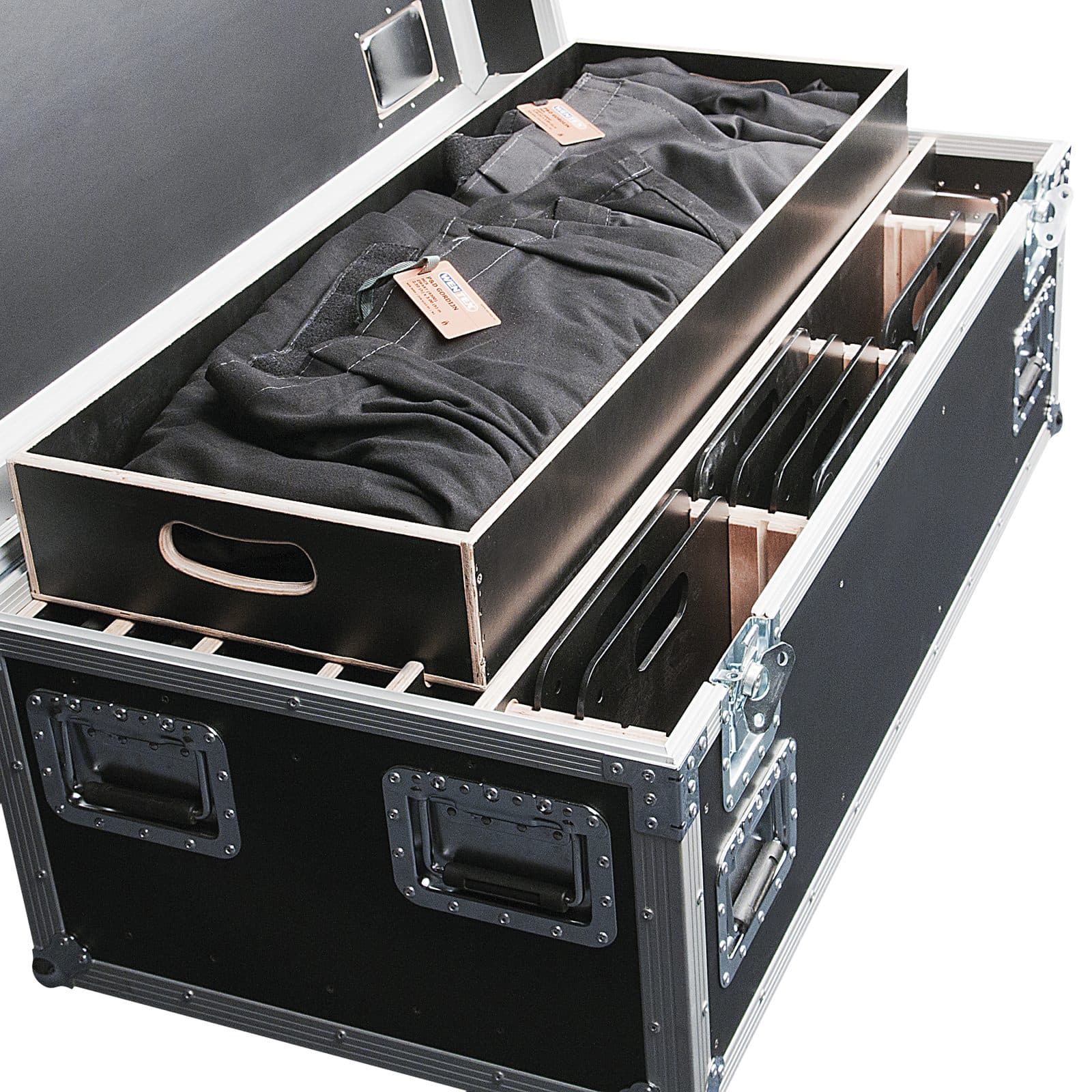

- Separate compartment with space for 6 pleated or 9 unpleated P&D curtains
(Products not included)

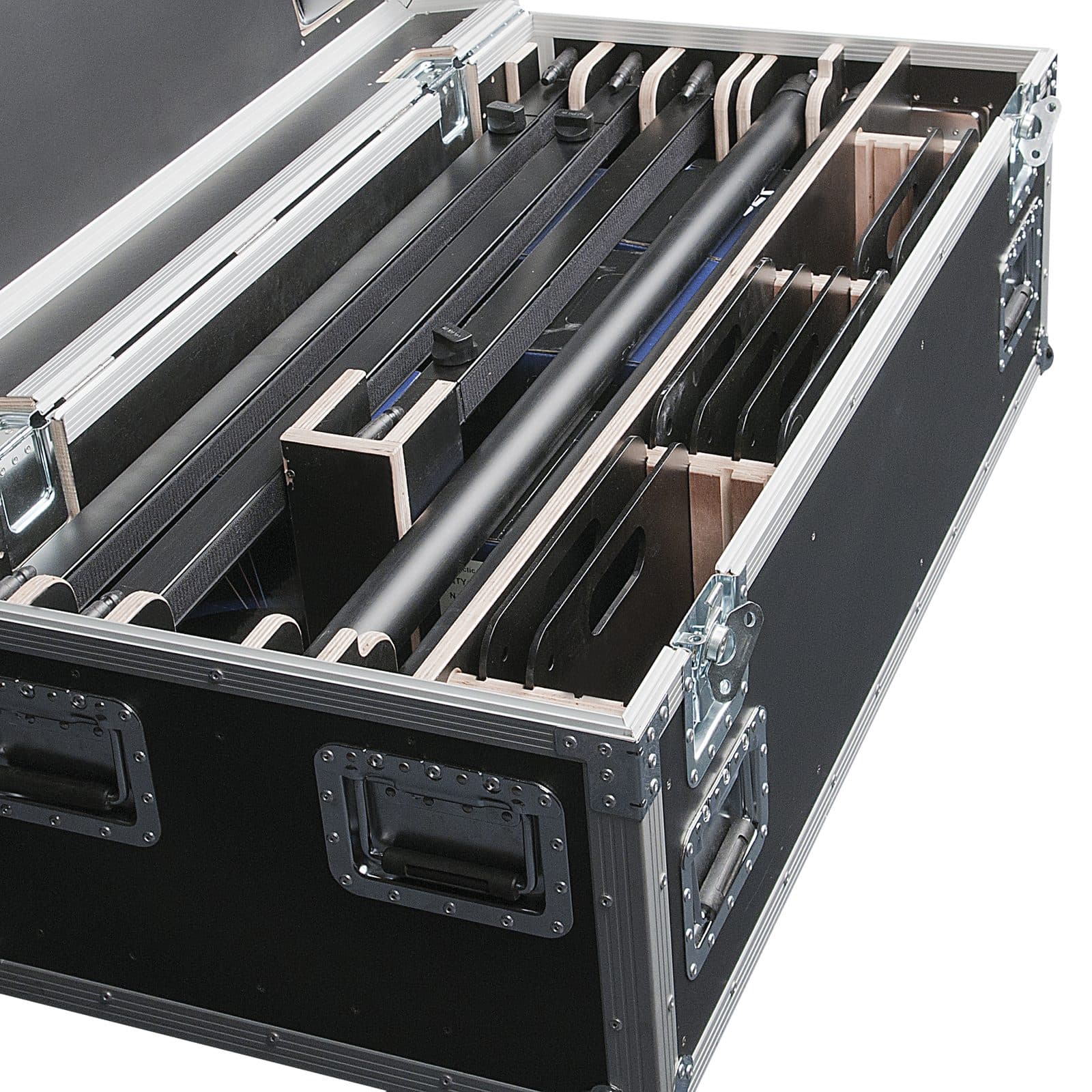

Please note that the uprights need to be placed on top of each other with each layer facing the opposite direction from the previous one.
| Height (mm) | 665 mm |
|---|---|
| Width (mm) | 1230 mm |
| Depth (mm) | 610 mm |
| Inner Height | 473 mm |
| Inner Width | 1180 mm |
| Inner Depth | 559 mm |
| Lid Depth | 129 mm |
| Weight | 67 kg |
| IP Rating | IP20 (indoor use only) |
| Material | Wood |
| Material Thickness | 8 mm |
| Fabric | Foam |
| Colour | Black |
| Flightcase Application | Utility Case |
| Handles | Front / Back / Left side / Right side |
| Handle Type | Recessed |
| Packing Capacity | 12 x Fixed Upright, 4 x Drape Support 90-120 cm, 8 x Drape Support 120-180 cm, 12 x Baseplate pin, 12 x Baseplate 350 x 300 mm |
| Castors | 4 |
| Castor Size | 100 mm |
| Castor Type | Swivel with brake |
| Latch Type | Butterfly |
| Hinge Type | Fixed |
| Included Accessories | Top-insert |
